Solar panel introduction

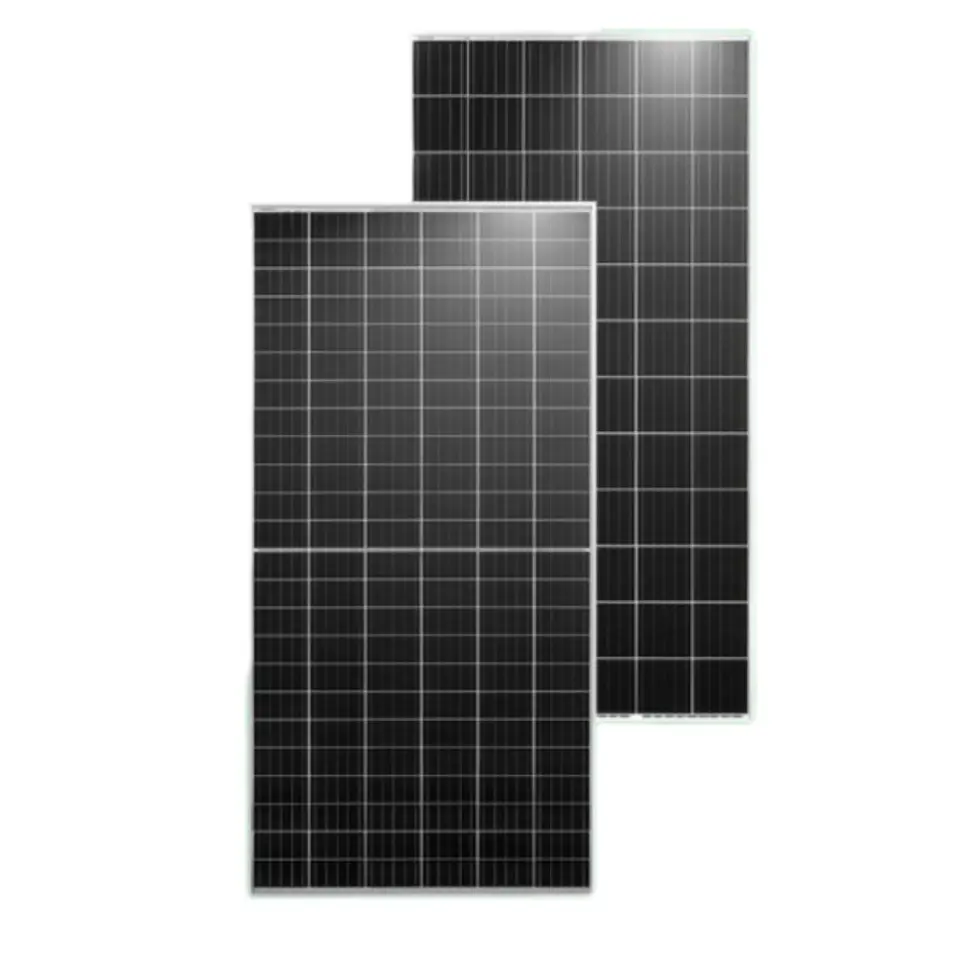

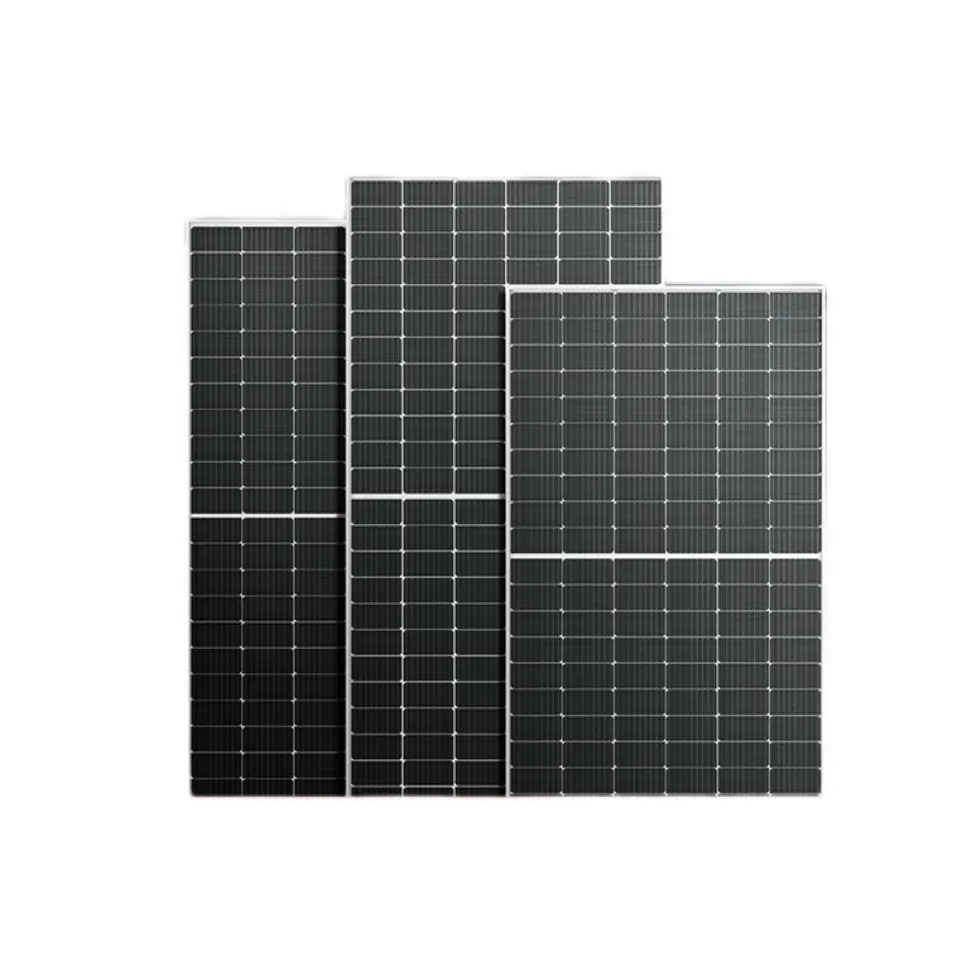

Solar panel , also known as solar cell module, is a photoelectric semiconductor sheet that uses sunlight to generate electricity directly, and is an assembly of several solar cells assembled on a board in a certain way, which is the core part of the solar power generation system.

Solar power generation There are two ways of solar power generation, one is the light-heat-electricity conversion mode, the other is the light-electricity direct conversion mode.

(1) Light-heat-electricity conversion method through the use of solar radiation generated heat energy generation, generally by the solar collector will be absorbed by the heat into the steam of the working medium, and then drive the turbine power generation. The former process is the light-heat conversion process; The latter process is the heat-electricity conversion process.

(2) The light-electric direct conversion method is to use the photoelectric effect to directly convert solar radiation into electrical energy, and the basic device for light-electric conversion is a solar cell. A solar cell is a device that converts solar energy directly into electrical energy due to the photovoltaic effect, and is a semiconductor photodiode. When the sun shines on the photodiode, the photodiode will turn the sun's light energy into electrical energy and generate current. When many cells are connected in series or in parallel, they can become a solar cell array with relatively large output power.

Application field

First, user solar power supply

1.Solar power system

 （1）Small power supply ranging from 10-100W, used in remote areas without electricity such as plateaus, islands, pastoral areas, border posts and other military and civilian life electricity, such as lighting, television, radio recorders, etc.; (2) 3-5KW household roof grid-connected power generation system; (3) Photovoltaic water pump: solve the problem of deep water well drinking and irrigation in areas without electricity.

2.Second, the field of transportation

Such as navigation lights, traffic/railway signal lights, traffic warning/sign lights, street lights, high-altitude obstacle lights, highway/railway wireless phone booths, unattended road class power supply.

3. Communications/communication field

Solar unattended microwave relay station, optical cable maintenance station, broadcast/communication/paging power system; Rural carrier telephone photovoltaic system, small communication machines, soldiers GPS power supply.

4. Petroleum, Marine and meteorological fields

Oil pipeline and reservoir gate cathodic protection solar power system, oil drilling platform living and emergency power supply, ocean detection equipment, meteorological/hydrological observation equipment, etc.

5, home lighting power supply

Such as solar garden lights, street lights, hand lights, camping lights, mountaineering lights, fishing lights, black lights, rubber cutting lights, energy-saving lamps and so on.

6. Photovoltaic power station

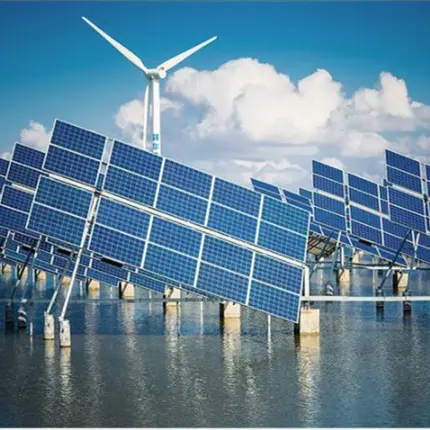

10KW-50MW independent photovoltaic power station, wind (firewood) complementary power station, various large parking plant charging stations.

7. Solar energy building

The combination of solar power generation and building materials, so that the future of large buildings to achieve self-sufficiency in electricity, is a major future development direction.

8. Other areas include

(1) With the car: solar car/electric car, battery charging equipment, car air conditioning, ventilation fan, cold drink box, etc.; (2) Solar hydrogen and fuel cell regenerative power generation system; (3) Power supply of seawater desalination equipment; (4) Satellites, spacecraft, space solar power plants, etc.
