Light pole product instructions

Before lifting the solar street lamp pole, check whether the fasteners in each part are firm, whether the lamp head is installed correctly, and whether the light source is working normally. Then debug whether the system works normally loosen the connection line of the solar panel on the controller, and the light source should work; Connect the cable to the solar panel, and the light should be turned off. At the same time, carefully observe the change of each indicator light on the controller, and can be lifted and installed when everything is normal. When the main light pole is lifted, pay attention to safety precautions, the screws should be absolutely fastened, such as the component sunrise Angle deviation, need to adjust its sunrise direction so that it is completely due south.

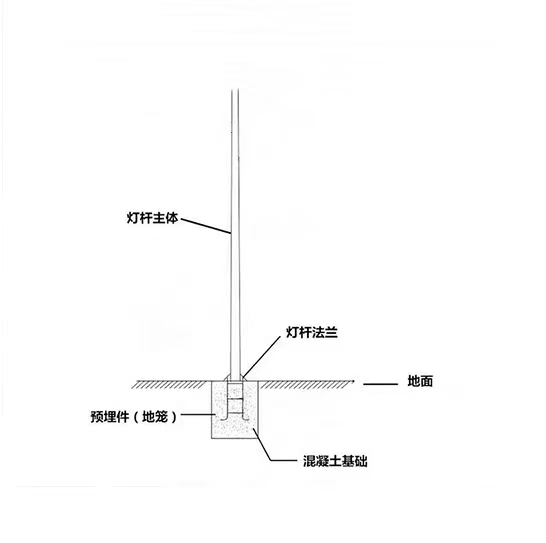

Wear the lifting rope in the appropriate position of the solar street lamp pole, slowly lift the lamp, pay attention to avoid damage to the solar cell module, in the process of starting, when the solar street lamp completely off the ground or completely out of the load, at least two installers use a large wrench to clamp the flange, Prevent the upper end of the lamp from rubbing with the crane rope due to the bottom swing during the lifting process, and damage the spray layer. When the lamp is lifted directly above the foundation, slowly lower the lamp, rotate the lamp pole, adjust the lamp head so that it is facing the road, and align the long hole on the flange with the anchor bolt. After the flange falls on the foundation, the flat pad or spring pad and nut are set in turn, and the verticality of the lamp pole is adjusted with a level. If the light pole is not perpendicular to the ground, the gasket can be placed under the flange of the light pole to make it perpendicular to the ground, and finally the nut is evenly tightened with a wrench, and the thread locking glue should be applied before tightening.

Remove the lifting rope and check that the solar panel is facing south. Otherwise, adjust. When adjusting the direction of the solar cell module, use a long lowering device to send the installation personnel 1 to 2 to the appropriate height, the installation personnel use a wrench to loosen the bolts fastening the upper solar street lamp pole assembly one by one, and then based on the compass, twist the upper pole assembly to the appropriate position, and finally tighten the fixing bolts of the upper pole assembly one by one, and ensure that the bolts are evenly stressed.
