Solar street lamp manual

Application: It is suitable for lighting places such as highway, main road, secondary road, branch road, intersection, tunnel bridge, park and square.

On rural roads and in rural areas: In remote areas where electricity supply may be unreliable or inaccessible, solar street lights can provide safe lighting. This is especially important for places like farmland, farmhouses, and country roads.

In city streets and parking lots: Solar street lights can be used in city streets and parking lots, especially in places far from new buildings or electricity supplies. Solar street lights can reduce crime rates and provide safety for pedestrians and drivers.

In parks and scenic spots: Solar street lights can provide lighting for parks, scenic spots and walking paths, so that visitors can safely move around at night. This is important to enhance the attractiveness of tourism and protect the natural environment.

On campus and on campus roads: Solar street lights can be used on school campuses and on campus roads to provide a safer environment for students, especially during nighttime events or when lighting is needed.

In industrial areas and transportation hubs: In industrial areas and transportation hubs, solar street lights can provide lighting to ensure the safety of workers and moving vehicles. This can also improve productivity and sustainability.

In military and border areas: Solar street lights can provide lighting in military installations and border areas for increased security and strategic advantage.

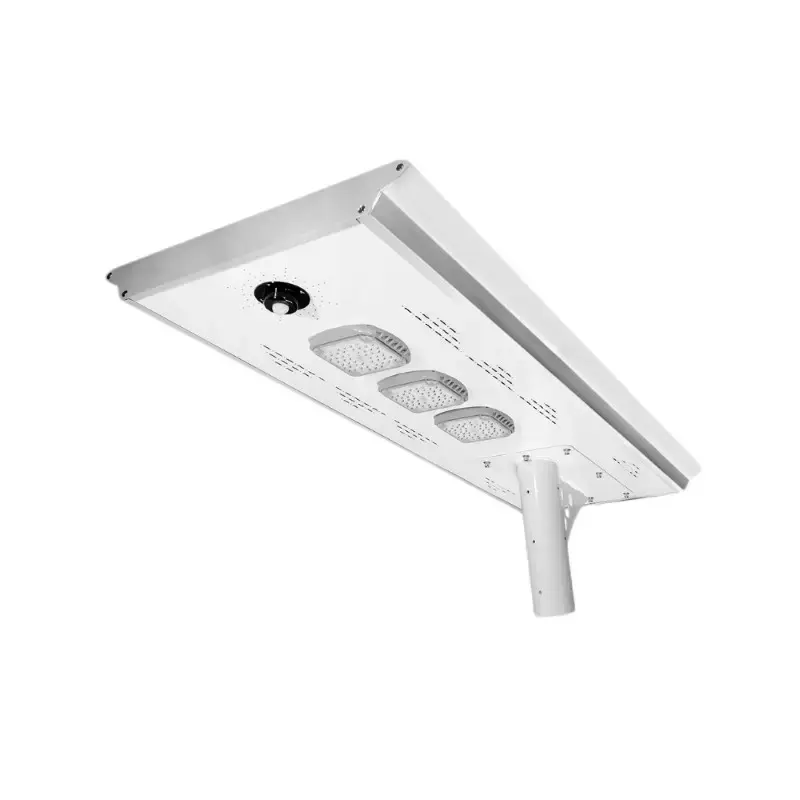

Performance characteristics: Using high brightness LED lamp source, high efficiency single crystal solar panel, large capacity energy storage battery and advanced waterproof processing technology, the lamp is efficient, environmentally friendly and durable. The use of sunlight for power generation, environmental protection and low carbon, saving energy consumption costs. Through the design of the material, color, line and so on of the solar street lamp, it becomes an urban landscape with artistic beauty and enhances the city's taste and image.

3: Product use method, can be illustrated to explain the name of each part, operation method and precautions

Installation: Solar street lights need to be installed in a place with sufficient light. When installing, pay attention to the direction of the street light to ensure that the solar panels are exposed to sunlight. At the same time, attention should be paid to whether the street light is tilted or distorted. After connecting all necessary cables and pipes, ensure that the street light is completely fixed and will not be blown over by the wind.

Charging: Solar street lights need to be charged with sunlight energy. Before installing street lights, solar panels should be placed in a well-lit environment for several days to ensure that the panels can be fully charged. After the street light is installed, it should be ensured that the solar panels are exposed to sunlight at night, and the lamp of the charger should also be switched on.

Usage: Solar street lights are charged directly and do not require an external power source. When the sun goes down, the street lights will turn on automatically. At night, the light should give enough light, and it should ensure that the power does not exceed the limit of the battery. During the day, the street lights should be automatically turned off, while the charger should remain charged.

4: Product maintenance and repair

Solar street lights need regular maintenance, first check whether the wiring terminals of the lamps are loose; Remove the LED light source, connect it to the battery to see whether the light is working normally, pay attention to the positive and negative poles, the light is not on indicates that the LED light is faulty, need to replace the LED light, the light indicates that the controller or the battery is faulty; Measure the battery power supply. If it is lower than 11 volts, it indicates that the controller is in the protected state and the lamp is fully charged before use. If the value is higher than 11 volts, the controller is faulty and needs to be replaced. The short working time of the LED lamp may be because there is dust on the solar panel, clean the dust to make it provide power generation efficiency or rainy weather for more than 3 days, and then return to normal after the weather is clear. If the LED brightness is not enough, clean the lampshade, clean the dirt in the contact part of the positive light source and the spring plate, so that it can conduct electricity smoothly. Light bulbs, solar panels and connection cables should be cleaned to ensure proper operation. At the same time, the street light should be checked for tilt or damage. If there is a problem, it should be repaired or replaced in time.

Do not wash or wipe with hard objects or corrosive solvents. Under normal circumstances, there is no need to clean the surface of the solar cell module, but the exposed wiring contacts should be regularly inspected and maintained.
